Keck

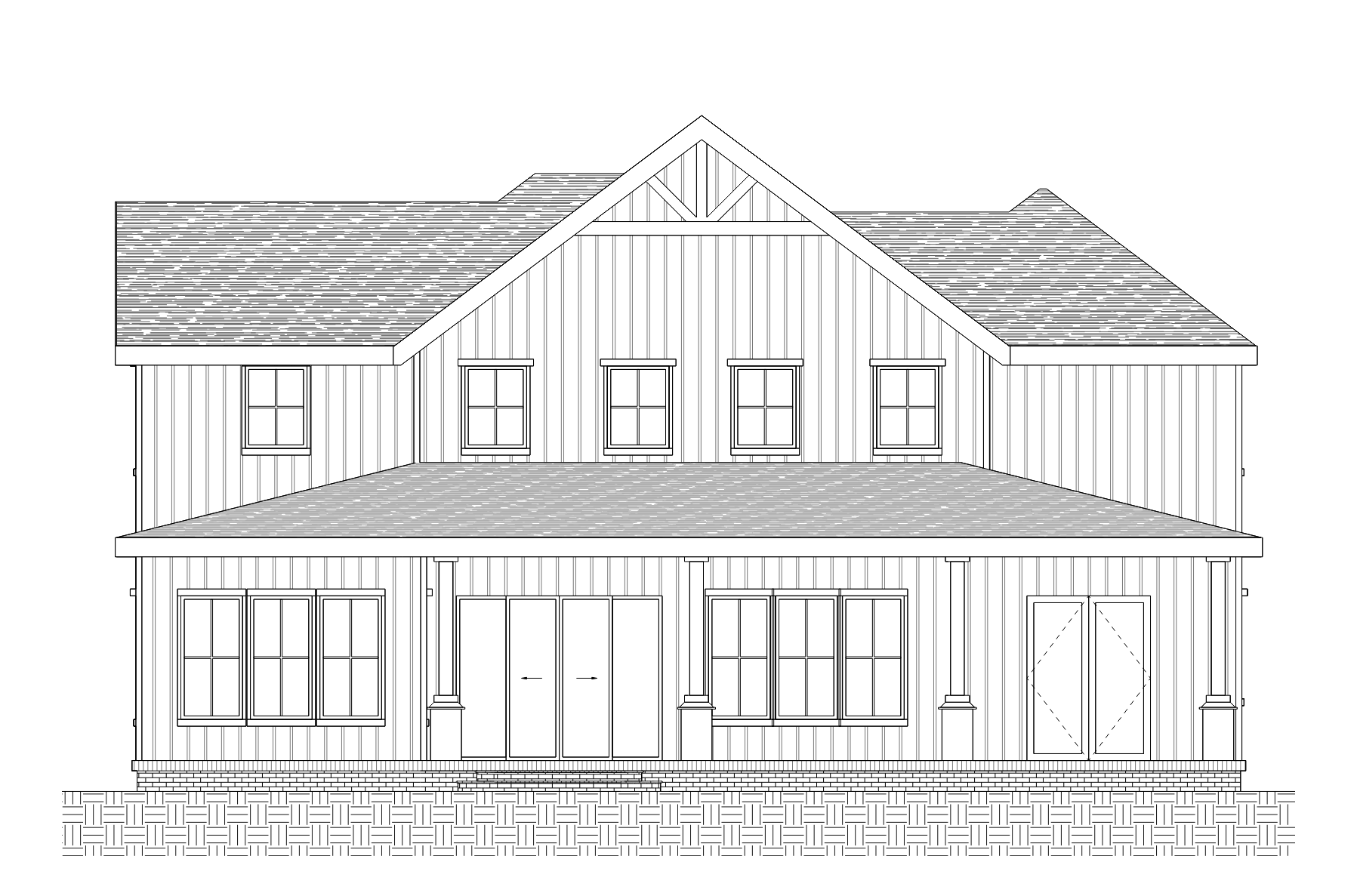

This 3 bed, 3.5 bath house plan gives you 3,136 square feet of heated living space and has a multi-gabled exterior with timbers in the gable peaks. A large front porch adds a touch of traditional charm and creates a welcoming entryway for guests.

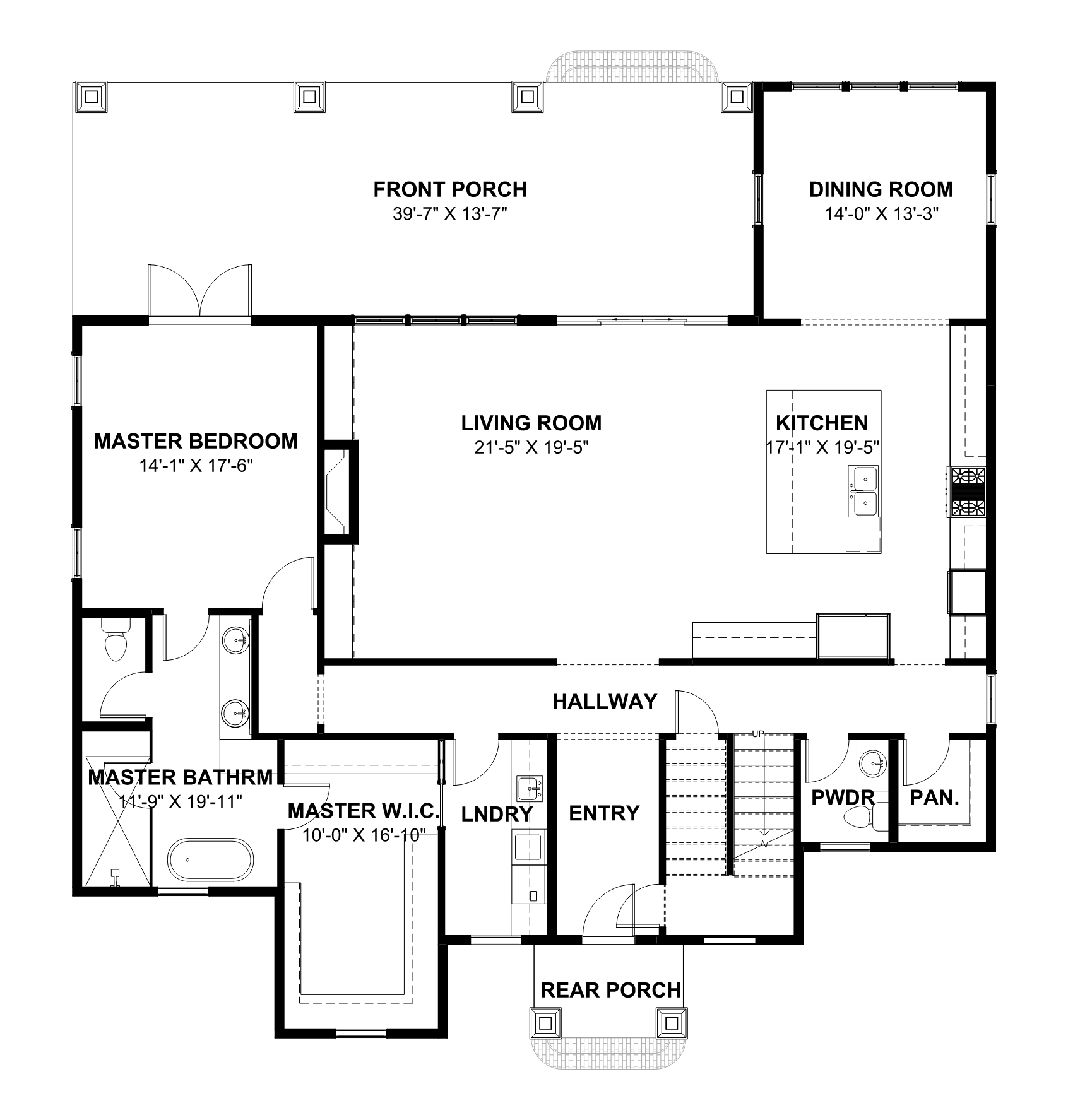

The large main floor master suite has a spacious walk-in closet with direct access to the laundry room and French door access to the back porch.
The open concept design seamlessly connects the kitchen with the dining and living rooms.
Upstairs, a media room is perfect for movie nights or relaxing with friends and an adjacent gym/office space offers a dedicated area for workouts or productivity.
The kids' bedrooms come complete with their own bathroom, providing privacy and convenience for all family members.
This 3 bed, 3.5 bath house plan gives you 3,136 square feet of heated living space and has a multi-gabled exterior with timbers in the gable peaks. A large front porch adds a touch of traditional charm and creates a welcoming entryway for guests.
The large main floor master suite has a spacious walk-in closet with direct access to the laundry room and French door access to the back porch.
The open concept design seamlessly connects the kitchen with the dining and living rooms.
Upstairs, a media room is perfect for movie nights or relaxing with friends and an adjacent gym/office space offers a dedicated area for workouts or productivity.
The kids' bedrooms come complete with their own bathroom, providing privacy and convenience for all family members.
This 3 bed, 3.5 bath house plan gives you 3,136 square feet of heated living space and has a multi-gabled exterior with timbers in the gable peaks. A large front porch adds a touch of traditional charm and creates a welcoming entryway for guests.
The large main floor master suite has a spacious walk-in closet with direct access to the laundry room and French door access to the back porch.
The open concept design seamlessly connects the kitchen with the dining and living rooms.
Upstairs, a media room is perfect for movie nights or relaxing with friends and an adjacent gym/office space offers a dedicated area for workouts or productivity.
The kids' bedrooms come complete with their own bathroom, providing privacy and convenience for all family members.
Plan Details
Square Footage Breakdown
Total Heated Area:3,136 sq. ft.
1st Floor:2,007 sq. ft.
2nd Floor:1,129 sq. ft.
Attic:268 sq. ft.
Porch, Rear:47 sq. ft.
Porch, Front:538 sq. ft.
Beds/Baths
Bedrooms:3
Full Bathrooms:3
Half Bathrooms:1
Foundation Type
Standard Foundations:Crawl
Exterior Walls
Standard Type(s):2x6
Plan includes the following elements:
Cover Sheet
Foundation Plan
Floor Plan(s)
Elevations (x2)
Roof Plan
Framing Plan(s)
Roof Framing Plan
Details/Sections
Electrical Plan(s)
These items are NOT included:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
Dimensions
Width:53' 7"
Depth:55' 6"
Ceiling Heights
First Floor / 10' 0"
Second Floor / 9' 0"
Roof Details
Primary Pitch: 9: 12
Secondary Pitch: 4:12
